Safety in Zig: Spatial Memory Safety

Zig provides spatial memory safety. It can perform bounds checking at compile time, for comptime known values, and crash with appropriate stack trace for runtime values. This means it prevents out-of-bounds access to arrays etc.

We’ll take a look at 2 simple examples to see how this works in practice.

Example 1: Compile time known values

const std = @import("std");


pub fn main() void{
	var buffer = [_]u8{1, 2, 3, 4, 5};
	const index: usize = 5;
	buffer[index] = 100;
}

In this example, we have an array buffer of 5 elements. We then try to access buffer[5], which is out of bounds since the valid indices are 0 to 4. Since the values are known at compile time, Zig will detect this and produce a compile-time error.

m3lk0r@parrot:~$ /home/m3lk0r/.cache/zig/p/N-V-__8AAN5NhBR0oTsvnwjPdeNiiDLtEsfXRHd1fv-R3TOv/zig build-exe main.zig
main.zig:7:12: error: index 5 outside array of length 5
    buffer[index] = 100;
           ^~~~~
referenced by:
    callMain [inlined]: /home/m3lk0r/.cache/zig/p/N-V-__8AAN5NhBR0oTsvnwjPdeNiiDLtEsfXRHd1fv-R3TOv/lib/std/start.zig:618:22
    callMainWithArgs [inlined]: /home/m3lk0r/.cache/zig/p/N-V-__8AAN5NhBR0oTsvnwjPdeNiiDLtEsfXRHd1fv-R3TOv/lib/std/start.zig:587:20
    posixCallMainAndExit: /home/m3lk0r/.cache/zig/p/N-V-__8AAN5NhBR0oTsvnwjPdeNiiDLtEsfXRHd1fv-R3TOv/lib/std/start.zig:542:36
    2 reference(s) hidden; use '-freference-trace=5' to see all references

Example 2: Runtime values

pub fn main() void {
    var buffer = [_]u8{1, 2, 3, 4, 5};
    var index: usize = 4;
    index += 1;
    buffer[index] = 100;
}

In this example, we have the same array buffer, but the index is determined at runtime. We start with index set to 4, and then we increment it by 1, making it 5. When we try to access buffer[5], it is out of bounds. Since the index is not known at compile time, Zig will allow the code to compile, but it will crash at runtime with an appropriate stack trace.

m3lk0r@parrot:~$ ./zig-bootstrap/zig/stage3/bin/zig build-exe main.zig
m3lk0r@parrot:~$ file main
main: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically linked, with debug_info, not stripped
m3lk0r@parrot:~$ ./main
thread 2816 panic: index out of bounds: index 5, len 5
/home/m3lk0r/main.zig:5:11: 0x11abd16 in main (main.zig)
    buffer[index] = 100;
          ^
/home/m3lk0r/zig-bootstrap/zig/stage3/lib/zig/std/start.zig:679:59: 0x11ab332 in callMain (std.zig)
    if (fn_info.params.len == 0) return wrapMain(root.main());
                                                          ^
/home/m3lk0r/zig-bootstrap/zig/stage3/lib/zig/std/start.zig:190:5: 0x11aadb1 in _start (std.zig)
    asm volatile (switch (native_arch) {
    ^
Aborted (core dumped)

In order to see how Zig does this under the hood, we need to check its AIR. You can read more about AIR here.

Zig master (0.16.0, at the time of writing) is used for this example

First, we need to compile the code to dump AIR. Run the following:

./zig-bootstrap/zig/stage3/bin/zig build-obj main.zig

Make sure to use the debug build of the Zig compiler, as --verbose-air is only available for debug build of the compiler.

The AIR produced is some ~220000 lines, so we will just look at main.

# Begin Function AIR: main.main:
# Total AIR+Liveness bytes: 771B
# AIR Instructions:         35 (315B)
# AIR Extra Data:           60 (240B)
# Liveness tomb_bits:       24B
# Liveness Extra Data:      12 (48B)
# Liveness special table:   4 (32B)
  %0!= save_err_return_trace_index()
  %1!= dbg_stmt(2:5)
  %2 = alloc(*[5]u8)
  %3!= store(%2, <[5]u8, "\x01\x02\x03\x04\x05".*>)
  %5!= dbg_var_ptr(%2, "buffer")
  %6!= dbg_stmt(3:5)
  %7 = alloc(*usize)
  %8!= store_safe(%7, <usize, 4>)
  %9!= dbg_var_ptr(%7, "index")
  %10!= dbg_stmt(4:5)
  %11 = load(usize, %7)
  %12!= dbg_stmt(4:11)
  %13 = block(usize, {
    %27 = add_with_overflow(struct { usize, u1 }, %11!, @.one_usize)
    %28 = struct_field_val(%27, 1)
    %29 = cmp_eq(%28!, @.one_u1)
    %30!= cond_br(%29!, cold {
      %2! %27! %7!
      %31!= call(<fn () noreturn, (function 'integerOverflow')>, [])
      %32!= unreach()
    }, {
      %33 = struct_field_val(%27!, 0)
      %34!= br(%13, %33!)
    })
  } %11!)
  %14!= store_safe(%7, %13!)
  %15!= dbg_stmt(5:5)
  %16 = load(usize, %7!)
  %17!= dbg_stmt(5:11)
  %18 = cmp_lt(%16, <usize, 5>)
  %21!= block(void, {
    %22!= cond_br(%18!, likely {
      %23!= br(%21, @.void_value)
    }, cold {
      %2!
      %19!= call(<fn (usize, usize) noreturn, (function 'outOfBounds')>, [%16!, <usize, 5>])
      %20!= unreach()
    })
  } %18!)
  %24 = ptr_elem_ptr(*u8, %2!, %16!)
  %25!= store_safe(%24!, <u8, 100>)
  %26!= ret_safe(@.void_value)
# End Function AIR: main.main

Understanding from %0 to %15 will be left as an exercise to the reader. At %16, %16 = load(usize, %7!) loads the current value of index. %18 = cmp_lt(%16, <usize, 5>) asks if the index, which is 5 is less than the array length. Next, %22!= cond_br(%18!, likely checks if index is 0-4 and continues to %23! if it is. But in our case, this check fails and therefore cold path is taken which calls %19!= call(<fn (usize, usize) noreturn, (function 'outOfBounds')>, [%16!, <usize, 5>]) This means the final write (from %24 to %26) doesn’t happen since cold path %20 was taken and thread 257906 panic: index out of bounds: index 5, len 5 is printed on stdout.

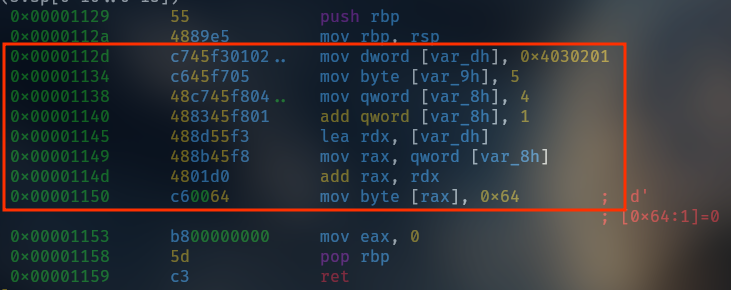

You can also see it in the disassembly since AIR is lowered to machine code.

disassembly

Isn’t this a bad thing? Why does it compile if it is going to crash at runtime? Not really. If the index is known at compile time, it gets caught and fixed(zen 6). But if the index is not known at compile time, Zig still provides a tool to catch out-of-bounds access at runtime, which is better than allowing undefined behavior(zen 5).

Plus, the entire idea of Zig when building binaries is to first build in debug mode, which has all these safety checks, and once the bugs have been pruned, you can build in any release mode, depending on your needs(speed, size, safety).
